SLED™ Euro-Terminal
The Sentry Longitudinal Energy Dissipater (SLED) Euro-Terminal is a narrow water filled attenuation device designed to shield the end of safety barriers in frontal and side impacts. The SLED Euro-Terminal's unique Containment Impact Sled (CIS), safely brings an impacting vehicle to a controlled stop and prevents the vehicle from vaulting, while containing the plastic debris within the steel CIS frame structure. The side safety panels and internal steel cables re-direct an impacting vehicle away from the blunt barrier end.
The SLED Euro-Terminal is the only free standing attenuation device that has been tested and accepted to EN1317-4 P4 requirements. Since the system is free standing, there are no pavement anchors, bolts or drilling to compromise the integrity of the roadway surface or bridge deck. The complete P4 SLED Euro-Terminal can be installed quickly with as little as one lorry and two workers and is designed to be placed on compacted dirt, gravel, decomposed granite, asphalt, or concrete.
Features
- Transitions attach to existing steel barrier bolt holes with no modification required
- Narrow footprint is ideal for road works on streets and motorways with minimal shoulder spacing
- Internal steel cables link all components, thereby minimizing vehicle intrusion into the work zone
- SLED Euro-Terminal quickly and easily attaches to steel mobile safety barriers
- SLED Euro-TFerminal is tested and accepted to European Crash Test Standard EN 1317-4 P4
- Quick and easy set-up, no foundation anchoring, minimized installation exposure time, ideal for short term or emergency maintenance and detour operations
- Visual float fill indicator caps quickly verify water module's are properly filled
- SLED Euro-Terminal's stout design virtually eliminates vaulting
- Cost effective terminal for the treatment of fafety barriers
- Short length reduces the chance for incidental contact
-
Containment Impact SLED (CIS) minimizes debris field
TT 2.1.100 | TT 5.1.100 | TT 1.3.110 | TT 4.3.110 | |

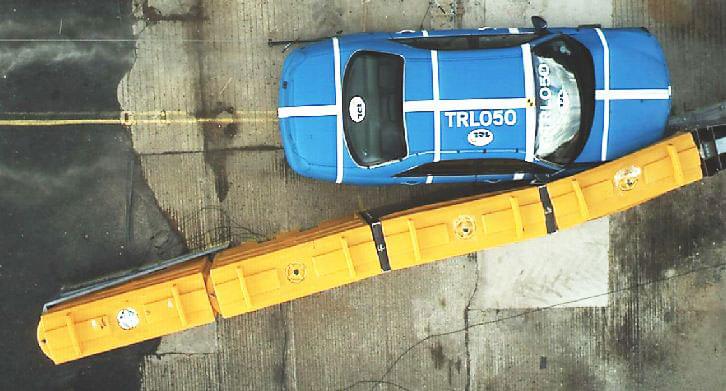

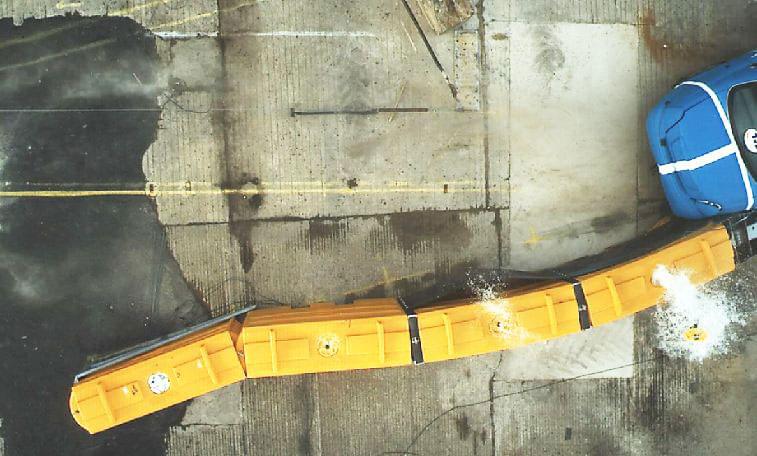

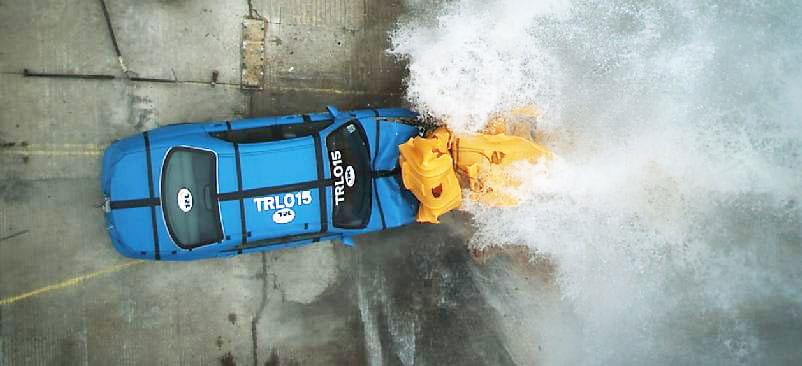

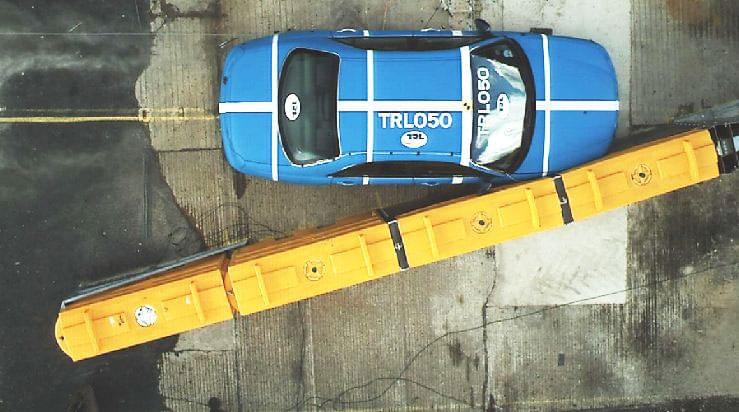

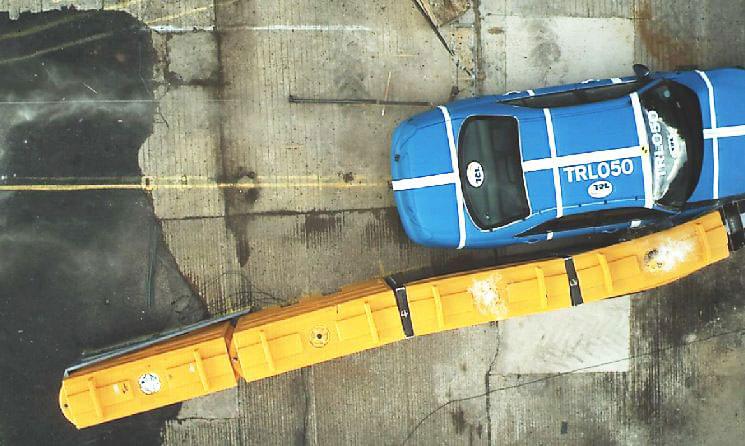

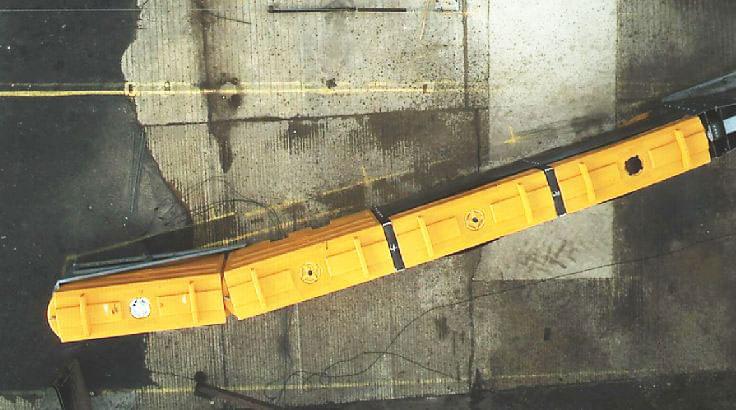

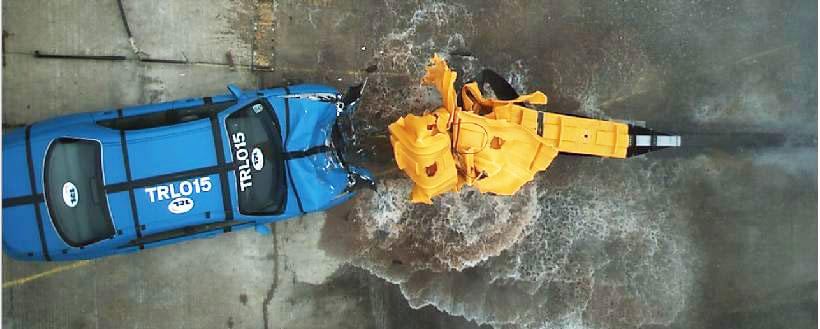

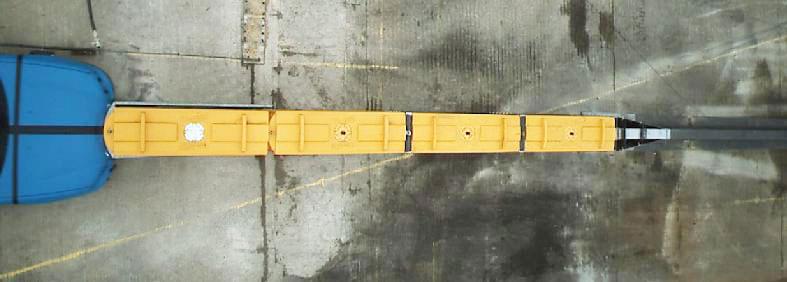

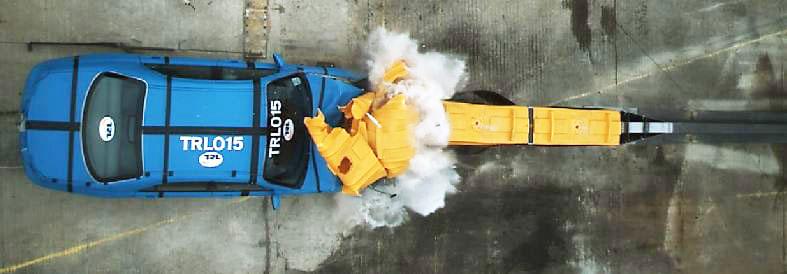

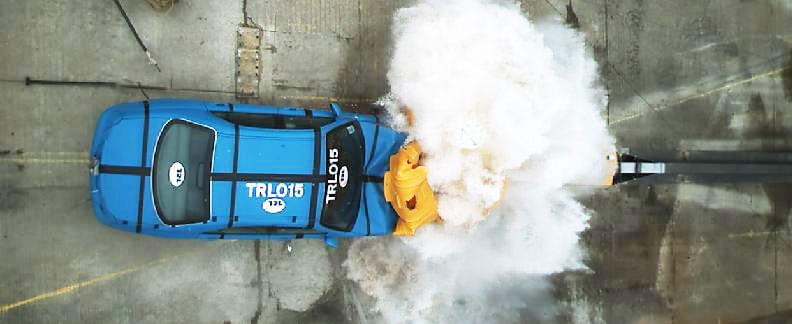

Crash Test | Head on nose ¼ offset to roadside | Side, 165" | Head on center | Side, 15" |
Vehicle Mass | 900 kg | 900 kg | 1,500 kg | 1,500 kg |
Velocity | 100 km/h | 100 km/h | 110 km/h | 110 km/h |
